Dimensions & Details
* GRP hull with timber deck & trimmings
* Length: 500cm
* Beam: 130cm
* Draught: 40cm
* Freeboard: 25cm
* Seating capacity: four adults
* Top speed:
10kph
* Range: approx 35km @
5kph (2.69 knots)
* Boat weight: 305kg (inc. batteries)
* Trailer weight: 155kgPropulsion
* Briggs & Stratton Etek (Lynch)
motor
*
Motor input power at full speed 2kw
* Toothed belt drive to stainless
prop shaft
* Three blade 9" dia bronze propeller
Power Source
* Main: ReLion
LiFePo4 26.8V 50Ah lithium battery
* Reserve: ReLion
LiFePo4 26.8V 50Ah lithium battery
* Independent battery isolating switches & socket for
charger
* Victron Energy BMV-712 Smart Bluetooth energy meter
for
power
consumption and battery
Amp/hour capacity etc.
Battery Charger
*
C-Tek 24V 14A electronic switch-mode charger |
Click images to enlarge

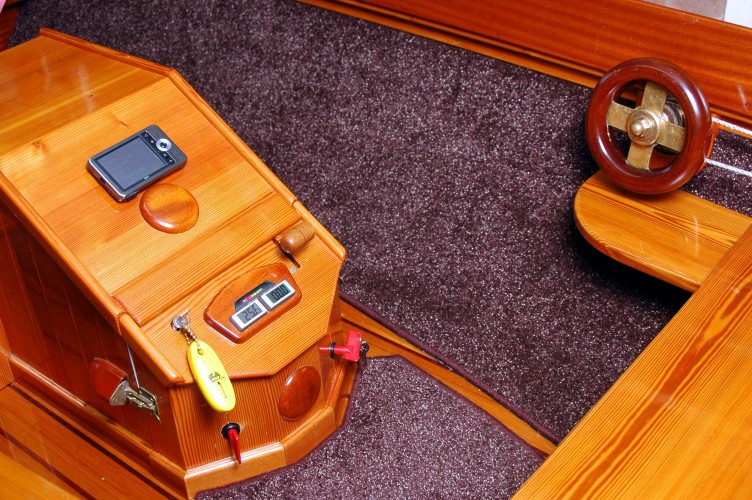

Control panel & steering wheel
Rudder & 10" dia x 8" pitch bronze propeller |
